180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface

  • 1
  • 2
  • 3

Brand Name : HSF

Model Number : ESSW-15A90

Place of Origin : China

MOQ : 10000 s.q.m.

Payment Terms : T/T,L/C

Supply Ability : 120000 kg per week

Delivery Time : within 20 days

Packaging Details : EPE film + PE bag + Processed wooden pallet

Material : Thermoplastic urethane

Color : White

Surface : Matte on both sides

Thickness : 180 μm

Width : Up to 1600 mm

Winding length : 150 meters or so

Sleeve ID : 3"

Contact Now

180μm Thermoplastic Urethane Film (TPU) for Medical Device Coating
This 180μm thermoplastic urethane film is specifically designed for medical device coating applications, including surgical drapes, gowns, medical packaging, and wound dressings. The thicker material provides enhanced durability and mechanical strength for demanding industrial applications.
Key Applications
  • Industrial Belting and Conveying: Provides increased strength and wear resistance for conveyor belts, power transmission belts, and lift belts
  • Inflatable Structures: Offers durability for tents, shelters, and pneumatic structures with resistance to abrasion, punctures, and UV degradation
  • Automotive and Transportation: Serves as protective films, gaskets, and components with enhanced impact and chemical resistance
  • Marine and Water Sports Equipment: Provides structural components for inflatable boats, water rafts, dry suits, and marine buoys
  • Heavy-Duty Protective Covers: Ensures prolonged protection for equipment, machinery, and outdoor furniture
  • Mining and Agriculture: Offers chemical and abrasion resistance for liners and protective covers in harsh environments
Technical Specifications
Test ItemTest StandardMeasurement UnitParameterTest Result
WidthTapelinemm695±5700
ThicknessASTM D3767mm0.18±0.010.18
SurfaceUnder the D65 light source, compared with the standard sample visually/Side A: Matt, Side B: Dull polishFrosting
Color
/Natural color without obvious color differenceNatural
HardnessASTM D2240Shore A85±385
DensityASTM D792g/cm³1.11±0.051.1
Gram weightGram weight scaleg/cm²185±10188
Tensile StrengthASTM D 412/Die CMPaCD: >40 MD: >40CD: 44.83 MD: 48.33
100% Tensile modulusASTM D 412/Die CMPaCD: >3 MD: >3CD: 4.42 MD: 4.57
300% Tensile modulusASTM D 412/Die CMPaCD: >5.5 MD: >5.5CD: 8.25 MD: 8.91
Elongation @ breakASTM D 412/Die C%CD: >600 MD: >600CD: 690 MD: 702
Tearing strengthASTM D 624KN/mCD: >60 MD: >60CD: 70.42 MD: 68.21
Yellowing resistance ratingASTM D 1148Grade≥4>4
Flame-retardant ratingGB/T 8410GradeA-0A-0
Tape release forceGB/T 2791gf/25.4>380>400

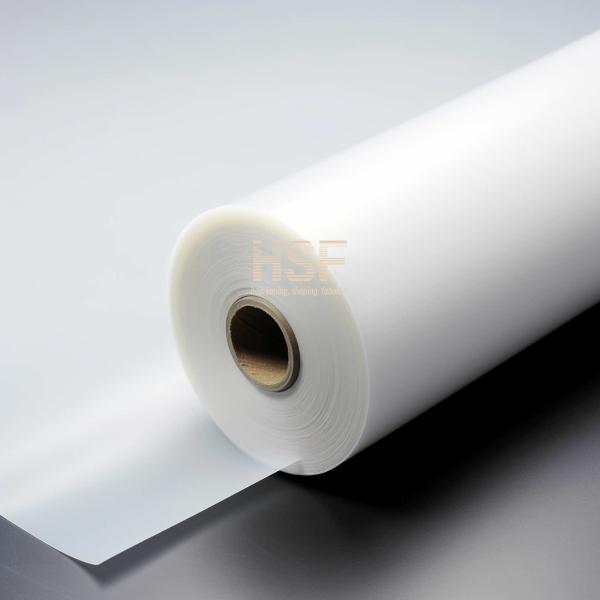

Product Images
180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface 180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface 180μm Thermoplastic Urethane Film TPU Film for Medical Device Coating with Matte Surface
